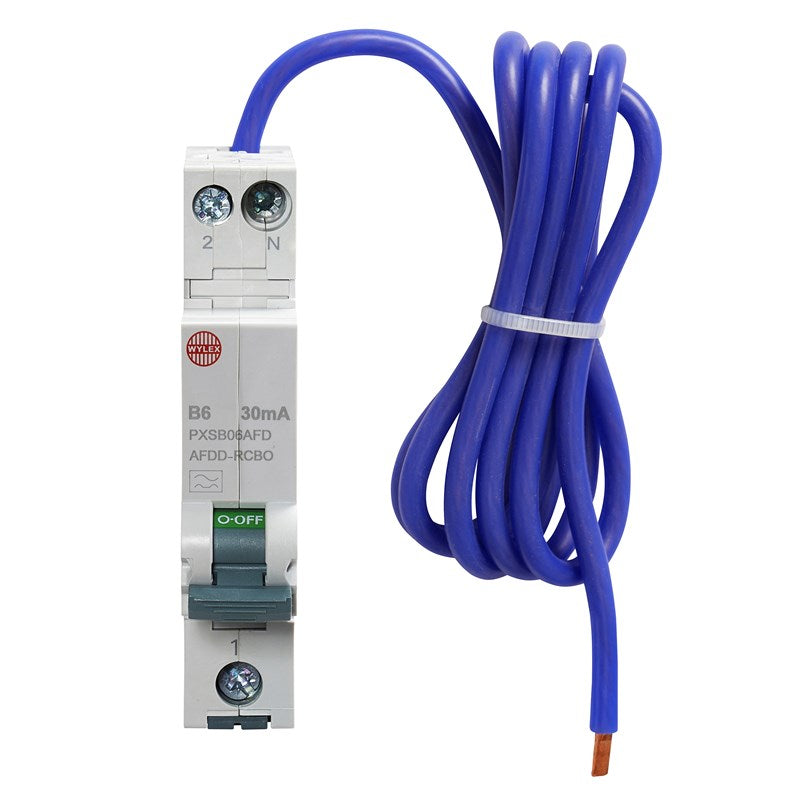

•  Single module, Miniature AFDD/RCBO combined, Bidirectional

• 6A B curve (MCB), 30mA Type A (RCD)
• Single pole with switched neutral
• Neutral Tail lengths = 1200mm
• For use in Wylex NH Distribution Boards

Product Specification:

• Number of poles (total) : 2
• Number of protected poles : 1
• Rated voltage : 240 V
• Rated current : 6A
• Rated fault current : 0.03 A
• Leakage current type : A
• Current limiting class : 3
• Rated short-circuit breaking capacity according to IEC 60947-2 : 10 kA
• Disconnection characteristic : Undelayed
• Voltage type : AC
• Frequency : 50 Hz
• Release characteristic : B
• Concurrently switching neutral conductor :  Yes
• With interlocking device :  No
• Over voltage category ; 3
• Pollution degree :  2
• Ambient temperature during operating :  -25 - 45 °C
• Width in number of modular spacings : 1
• Built-in depth : 70 mm
• Degree of protection (IP) :  IP20
• Product Standard/s    :  IEC 61009-1 / IEC 62606
• Frequency : 50 Hz
• Amperage : 6a
• Height : 90 mm
• Width : 18 mm
• Depth : 69 mm
