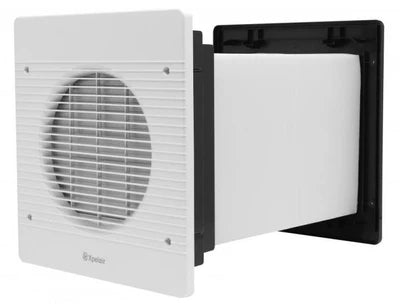

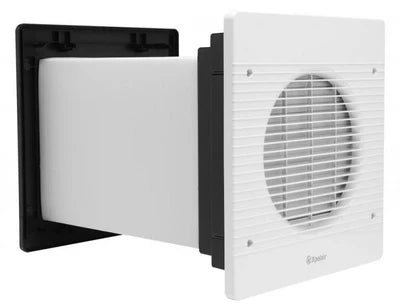

WX12 is an intake / extract wall fan suitable for installations in pubs, restaurants, offices, kitchens, factories, schools and shops.

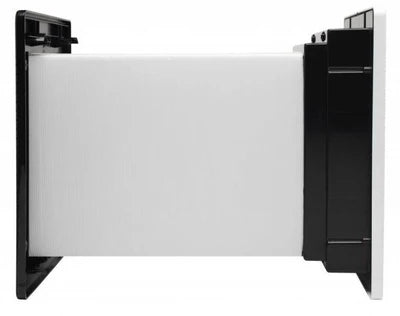

The fan comes complete with a corrugated plastic wall liner and is suitable for installations of wall thickness  275 to 375mm.

WX12 has a 2 speed extract rate of 1162 and 1715 m3/hr and a 2 speed intake rate of 815 & 969 m3/hr. Reversing the fan is achieved with a FR22/30 controller.

The fan includes a silent integral electro-thermal shutter to prevent backdraughts

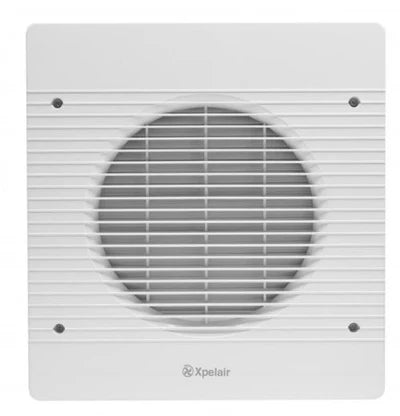

For safety, a finger-guard is integrated into the ultra-slim high gloss ABS fascia and the exterior wall grille design. The fan includes a positive plug and socket assembly provides a means of isolation.

Technical Specifications:

• Protection Rating: IPX4 (4)

• Model Number: WX12

• Warranty: 2 years

• Dimensions (mm): Depth 500.00 × Height 520.00 × Width 235.00

• Weight: 8.03 kg

• Humidistat: No

• Timer: No
