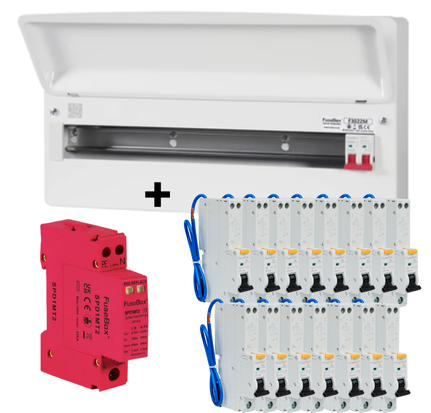

Fusebox 21-way Main Switch Consumer Unit + SPD & 15 RCBO Bundle

Fusebox 21-way Main Switch Consumer Unit + SPD & 15 RCBO Bundle
Roll over image to zoom in Click on image to zoom
Fusebox 21-way Main Switch Consumer Unit + SPD & 15 RCBO Bundle

Fusebox 21-way Main Switch Consumer Unit + SPD & 15 RCBO Bundle

Fusebox
£208.95For 1
£250.74 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

BEST VALUE!!
Fusebox 21-way Main Switch Consumer Unit + SPD & 15 RCBO Bundle

SPECIFY RCBO SIZES IN THE BOX ABOVE



Product Details



NUMBER OF USABLE WAYS 21


WEIGHT (1PC) Kg 4.8
DIMENSIONS (HxWxD)mm 259x486x113
DOUBLE BANK N
TAIL CLAMP COMPATIBLE (ACCF) Y
STANDARD EN 61439-3
RATED VOLTAGE (Un/AC) 230V
FREQUENCY (Hz) 50/60
PROTECTION DEGREE (IP) 2XC
MAXIMUM TERMINAL BAR CAPACITY 16mm ²
TERMINAL BAR TIGHTENING TORQUE (Nm) 2
DEVICE MOUNTING 35mm DIN RAIL
MATERIAL 1mm ELECTRO GALVANISED STEEL (ZINC)
FINISH RAL 9001 POWDER COATED SMOOTH FINISH
KNOCKOUTS SELECTION 20mm - 40mm
ACCESSORY PACK CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP

Specification

Gtin

 5060523523900
