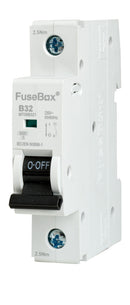

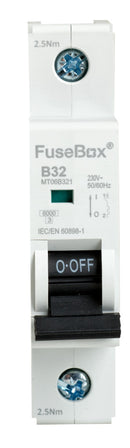

Fusebox MT06B321 32A 6kA 1 pole B CURVE MCB

Name: Fusebox MT06B321 32A 6kA 1 pole B CURVE MCB
Brand: Fusebox
SKU: MT06B321
Price: 1.824 GBP
Availability: InStock

Roll over image to zoom in Click on image to zoom

Fast Delivery

Product Details

STANDARD	IEC 61009-1, IEC 61009-2-2
NUMBER OF POLES	1
RATED VOLTAGE (Un/AC)	230V
FREQUENCY (Hz)	50/60
RATED BREAKING CAPACITY (Icn)	6000A (6kA)
RATED CURRENT (In)	32
TRIPPING CHARACTERISTICS	B Curve: 3-5In
MECHANICAL ENDURANCE	10,000
PROTECTION DEGREE (IP)	20
MAXIMUM TERMINAL CAPACITY	16mm ²
RECOMMENDED TIGHTENING TORQUE (Nm)	2.5
TRIPPING TYPE	Thermal magnetic
MOUNTING	35mm din rail
MATERIAL	PA6 (Nylon 6)
WEIGHT (1PC) Kg	0.12
