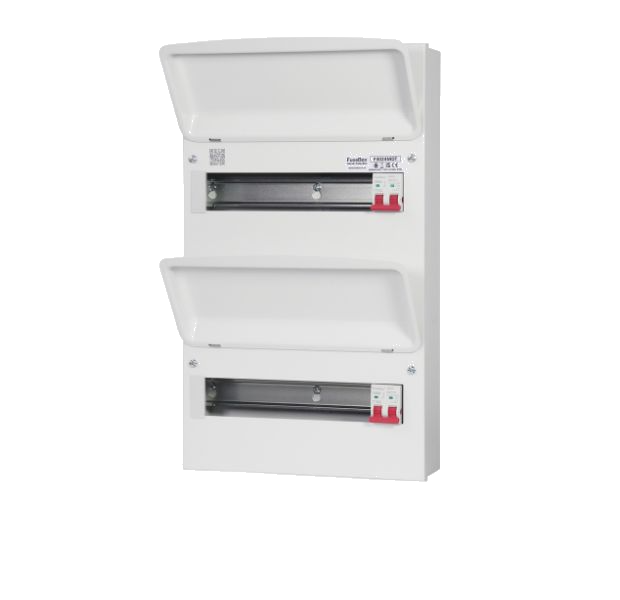

Fusebox F3024MDT 24 Way Consumer Unit (12/12) 2 x 100A Main Switch (Replacement of F2020MDT)

Fusebox F3024MDT 24 Way Consumer Unit (12/12) 2 x 100A Main Switch (Replacement of F2020MDT)
Roll over image to zoom in Click on image to zoom
Fusebox F3024MDT 24 Way Consumer Unit (12/12) 2 x 100A Main Switch (Replacement of F2020MDT)

Fusebox F3024MDT 24 Way Consumer Unit (12/12) 2 x 100A Main Switch (Replacement of F2020MDT)

Fusebox
£112.86For 1
£135.43 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

NEW F3 Series!!!
Fusebox F3024MDT 24 Way Consumer Unit (12/12) 2 x 100A Main Switch (Replacement of F2020MDT)

Product Details

STANDARD EN 61439-3
RATED VOLTAGE (Un/AC) 230V
FREQUENCY (Hz) 50/60
PROTECTION DEGREE (IP) 2XC
MAXIMUM TERMINAL BAR CAPACITY 16mm ²
TERMINAL BAR TIGHTENING TORQUE (Nm) 2
DEVICE MOUNTING 35mm DIN RAIL
MATERIAL 1mm ELECTRO GALVANISED STEEL (ZINC)
FINISH RAL 9001 POWDER COATED SMOOTH FINISH
KNOCKOUTS SELECTION 20mm - 40mm
ACCESSORY PACK CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP
NUMBER OF USABLE WAYS 24
SPLIT 12/12
PART NUMBER F3024MDT
GTIN-13 5060523526642
MAIN SWITCH RATING (AC22A) 100A
WEIGHT (1PC) Kg 7.9
DIMENSIONS (HxWxD)mm 512x306X113
DOUBLE BANK Y
TAIL CLAMP COMPATIBLE (ACCF) Y

Specification

Gtin

 5060523526642
