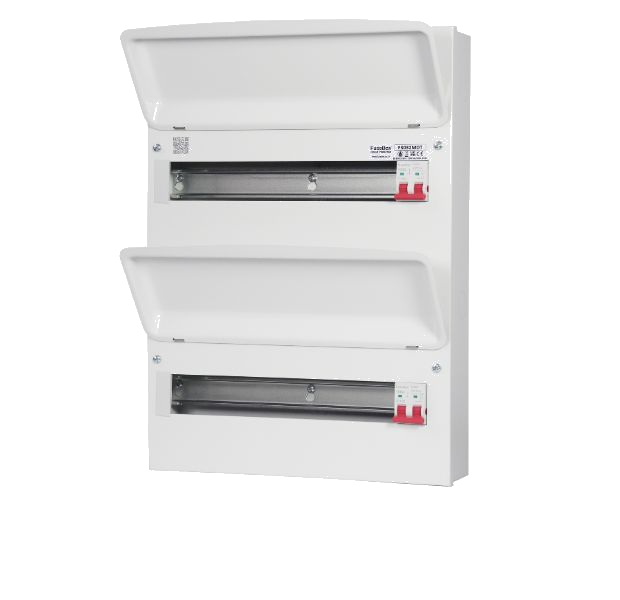

Fusebox F3032MDT 32 Way Consumer Unit (16/16) 2- 100A Main Switch (Replacement of F2030MDT)

Fusebox F3032MDT 32 Way Consumer Unit (16/16) 2- 100A Main Switch (Replacement of F2030MDT)

Roll over image to zoom in Click on image to zoom

Fusebox F3032MDT 32 Way Consumer Unit (16/16) 2- 100A Main Switch (Replacement of F2030MDT)

Fast Delivery

Product Details

STANDARD	EN 61439-3
RATED VOLTAGE (Un/AC)	230V
FREQUENCY (Hz)	50/60
PROTECTION DEGREE (IP)	2XC
MAXIMUM TERMINAL BAR CAPACITY	16mm ²
TERMINAL BAR TIGHTENING TORQUE (Nm)	2
DEVICE MOUNTING	35mm DIN RAIL
MATERIAL	1mm ELECTRO GALVANISED STEEL (ZINC)
FINISH	RAL 9001 POWDER COATED SMOOTH FINISH
KNOCKOUTS	SELECTION 20mm - 40mm
ACCESSORY PACK	CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP
NUMBER OF USABLE WAYS	32
SPLIT	16/16
PART NUMBER	F3032MDT
GTIN-13	5060523526680
MAIN SWITCH RATING (AC22A)	100A
WEIGHT (1PC) Kg	8.1
DIMENSIONS (HxWxD)mm	512x378x113
DOUBLE BANK	Y
TAIL CLAMP COMPATIBLE (ACCF)	Y

Specification

Gtin	5060523526680
