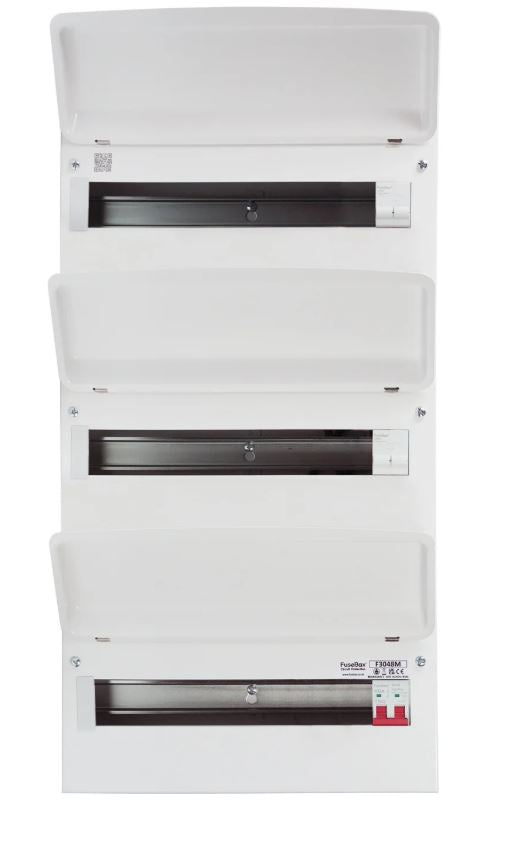

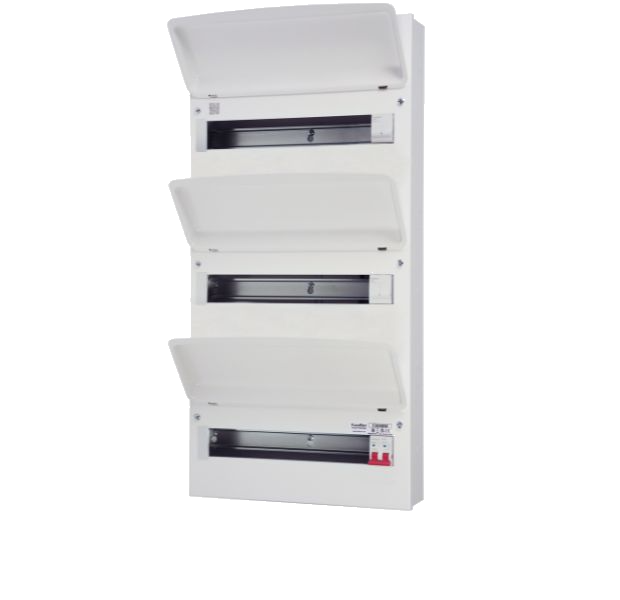

Fusebox F3048M 100A Main Switch 48 Way (16/16/16) Triple Bank (Replacement of F2045M)

Fusebox F3048M 100A Main Switch 48 Way (16/16/16) Triple Bank (Replacement of F2045M)
Fusebox F3048M 100A Main Switch 48 Way (16/16/16) Triple Bank (Replacement of F2045M)
Roll over image to zoom in Click on image to zoom
Fusebox F3048M 100A Main Switch 48 Way (16/16/16) Triple Bank (Replacement of F2045M)
Fusebox F3048M 100A Main Switch 48 Way (16/16/16) Triple Bank (Replacement of F2045M)

Fusebox F3048M 100A Main Switch 48 Way (16/16/16) Triple Bank (Replacement of F2045M)

Fusebox
Add RCBO's (Type A, B Curve): No RCBO
£151.60For 1
£181.92 Including VAT
Free delivery on orders over £100
£6.95 Delivery on orders under £100

Fast Delivery

NEW F3 Series!!!
Fusebox F3048M 100A Main Switch 48 Way (16/16/16) Triple Bank (Replacement of F2045M)

Product Details

NUMBER OF USABLE WAYS  48
PART NUMBER WITH T2 SPD  F3048M
WEIGHT (1PC) Kg  8
DIMENSIONS (HxWxD)mm  762x378x113
DOUBLE BANK  Y
TAIL CLAMP COMPATIBLE (ACCF)  Y
STANDARD EN 61439-3
RATED VOLTAGE (Un/AC) 230V
FREQUENCY (Hz) 50/60
PROTECTION DEGREE (IP) 2XC
MAXIMUM TERMINAL BAR CAPACITY 16mm ²
TERMINAL BAR TIGHTENING TORQUE (Nm) 2
DEVICE MOUNTING 35mm DIN RAIL
MATERIAL 1mm ELECTRO GALVANISED STEEL (ZINC)
FINISH RAL 9001 POWDER COATED SMOOTH FINISH
KNOCKOUTS SELECTION 20mm - 40mm
ACCESSORY PACK CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP

Specification

Gtin

 5060523526697
